8MP 5X Zoom PTZ Camera POE Color Vu Built-in Mic Speaker
8MP 5X Zoom PTZ Camera POE Color Vu Built-in Mic Speaker
SPECIFICATIONS
AI Functions: Human Detection
Audio: Built-in Microphone & Speaker
Audio Output: Two Way Audio
Certification: CE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 139*117*107mm
Feature1: Smart Dual Light
Feature2: ColorVu & IR
Feature3: Human and Vehicle Detection
Feature4: Hikvision Compatible
Feature5: 8MP Dual illumination Varifocal PTZ Camera
High Definition: 8.0 Megapixels
IP Rating: IP66
IR Distance(m): 40m
Image Sensor: 1/2.8" IMX415 CMOS
Installation: Side,ceiling,Wall Mounted
Internal Storage: 256GB
Lens: 2.7-13.5mm
Lens (mm): 2.7-13.5mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): Color: 0.01lux @(F1.6), 0 lux with IR light
Power Consumption(W): 12W
Power Source: With Poe
Power Supply: With Poe
Power Supply(V): 12 VDC
Rechargeable Battery: NONE
Scene: Indoor and outdoor
Sensor: CMOS
Smart home platform: Other
Style: Turret Camera
Supported Mobile Systems: Android, iOS
Supported Operating Systems: Windows 98,Windows 8,Windows 2003,Windows 11,Windows 2000,Windows 2008,macOS,Windows 7
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 100°
Zoom type: Optical zoom
FEATURES
> 1/2.8" IMX415 CMOS
> 3840 × 2160@20 fps
>2.7-13.5mm 5X Varifocal lens
> H.265+, H.265, H.264
> F1.6-3.3 lens
> Built-in Microphone & Speaker
> IR Light Range: up to 40 m
> White Light Range: up to 40 m
> WDR/HDR/3D DNR/HLC/BLC
>Water and dust resistant(IP65)
>Color: 0.01 lux @(F1.6), 0 lux with light
1.what is "Hikvision Protocl "?
Hikvision products all haveHikvision Protocland it support Hikvision cameraplug and play,make it easy to be install with Hikvision NVR.

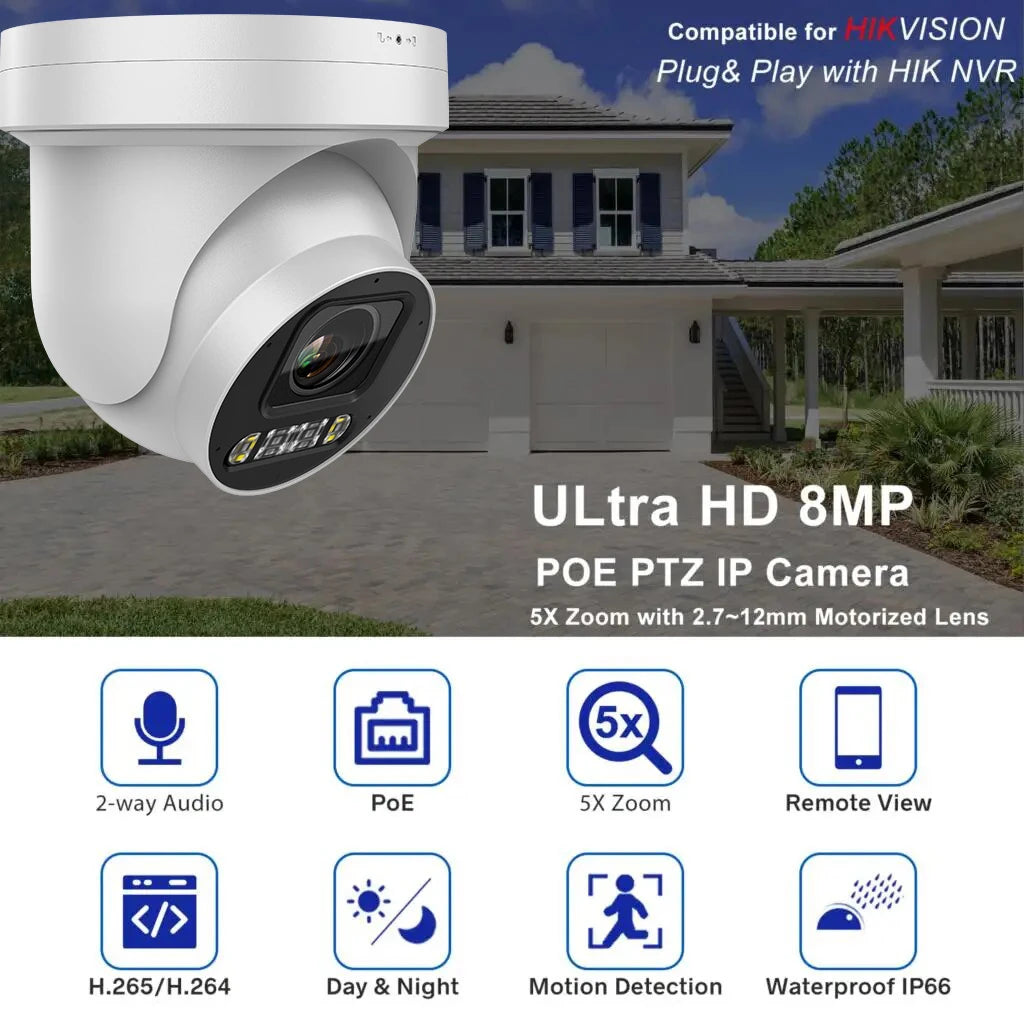

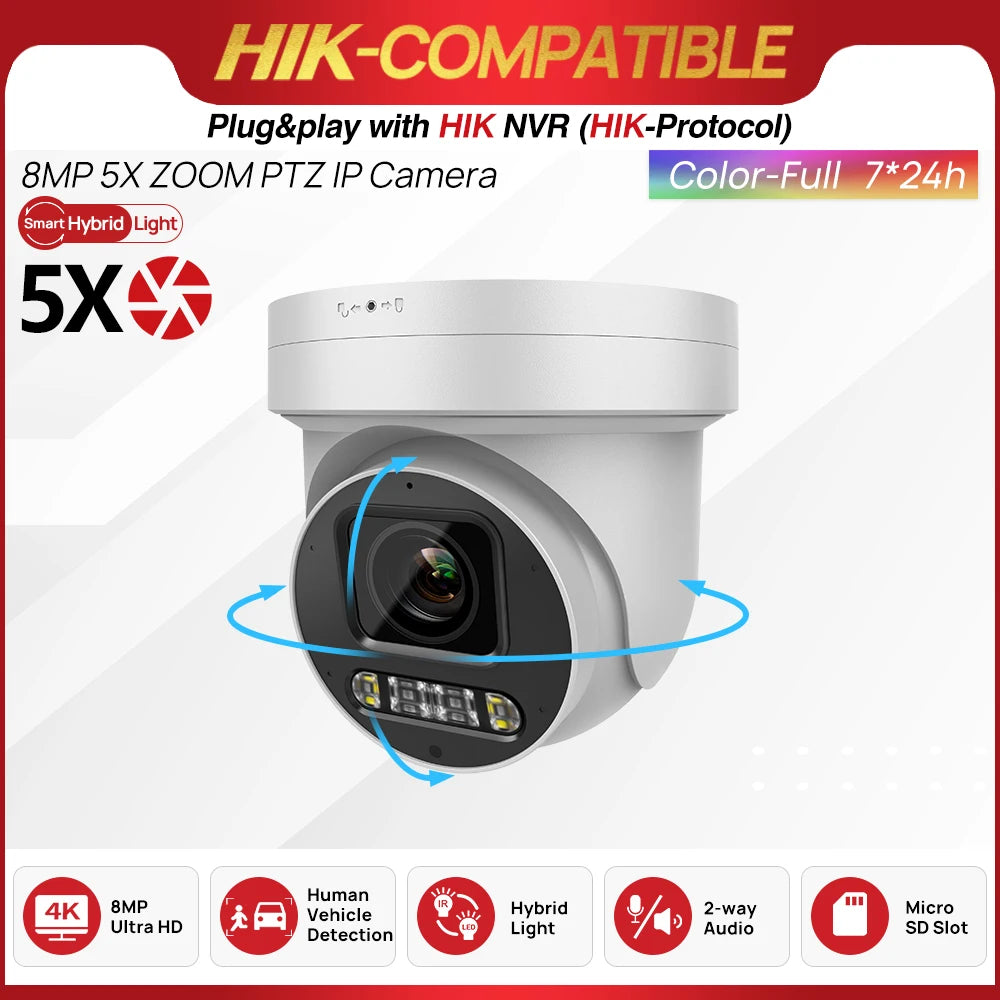

2.what is "Hikvision compatible"?
Is mean this camera supportplug & playwithHikvision NVR(Also Hikvision software).
You don't need to manual setting camera IP and password etc...
Just plug in and camera will work!
Which software can i use to find this camera？ (Default username:admin passward:123456)

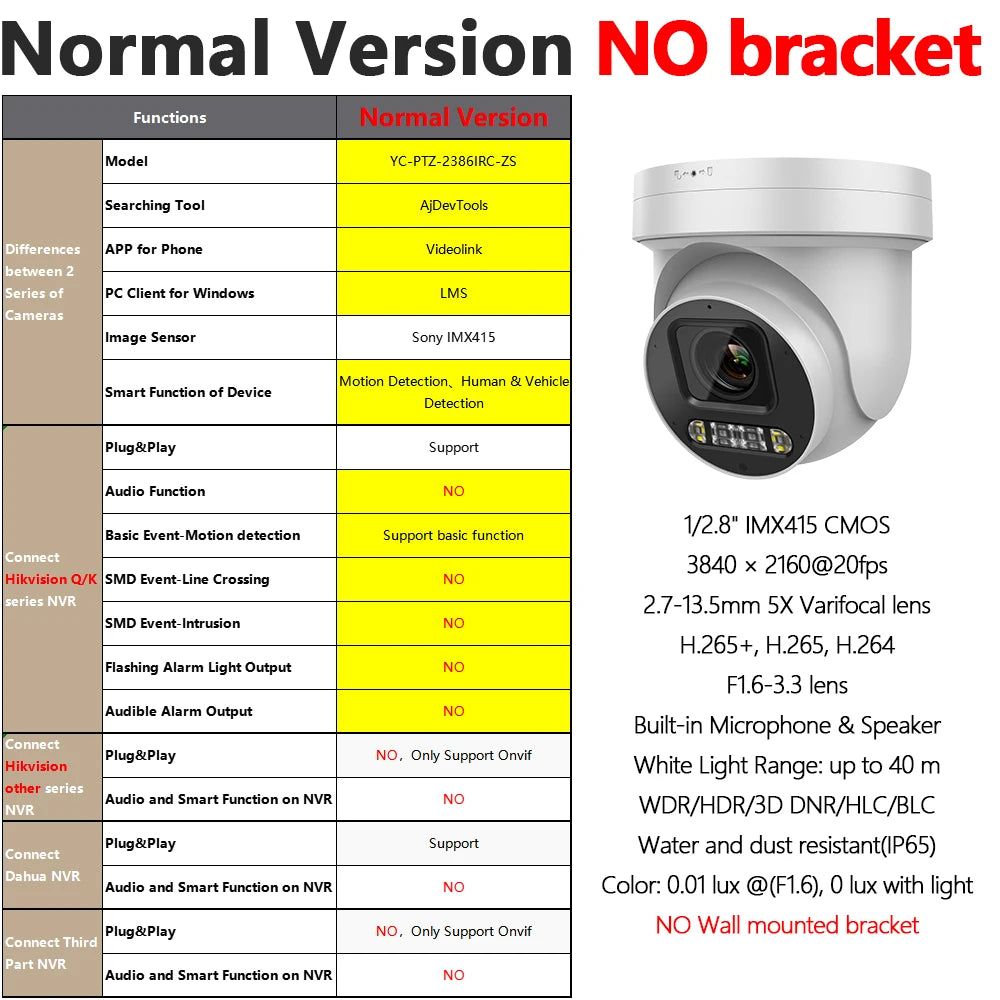

Normal Version:
1.Searching Tool：AjDevTools，SADP
2.APP for Phone：Videolink
3.PC Client for Windows：LMS
Updated Version:
1.Searching Tool：SettingTool，SADP
2.APP for Phone：Remoteyes
3.PC Client for Windows：VMS
Download:https://www.ourdownload.tech
> 3840 × 2160@20 fps
>2.7-13.5mm 5X Varifocal lens
> H.265+, H.265, H.264
> F1.6-3.3 lens
> Built-in Microphone & Speaker
> IR Light Range: up to 40 m
> White Light Range: up to 40 m
> WDR/HDR/3D DNR/HLC/BLC
>Water and dust resistant(IP65)
>Color: 0.01 lux @(F1.6), 0 lux with light
Camera | |
Image Sensor |
1/2.8"IMX415 CMOS |
Min. Illumination |
Color: 0.01lux @(F1.6), 0 lux with IR light |
Shutter Speed |
1/10 s to 1/10,000 s |
Slow Shutter |
Yes |
Day & Night |
IR cut Filter |
Digital Noise Reduction |
3D DNR 2D DNR |
WDR |
120dB |
3-Axis Adjustment |
Pan: 0° to 300°, tilt: 0° to180°, rotate: 0° to 360° |
Lens | |

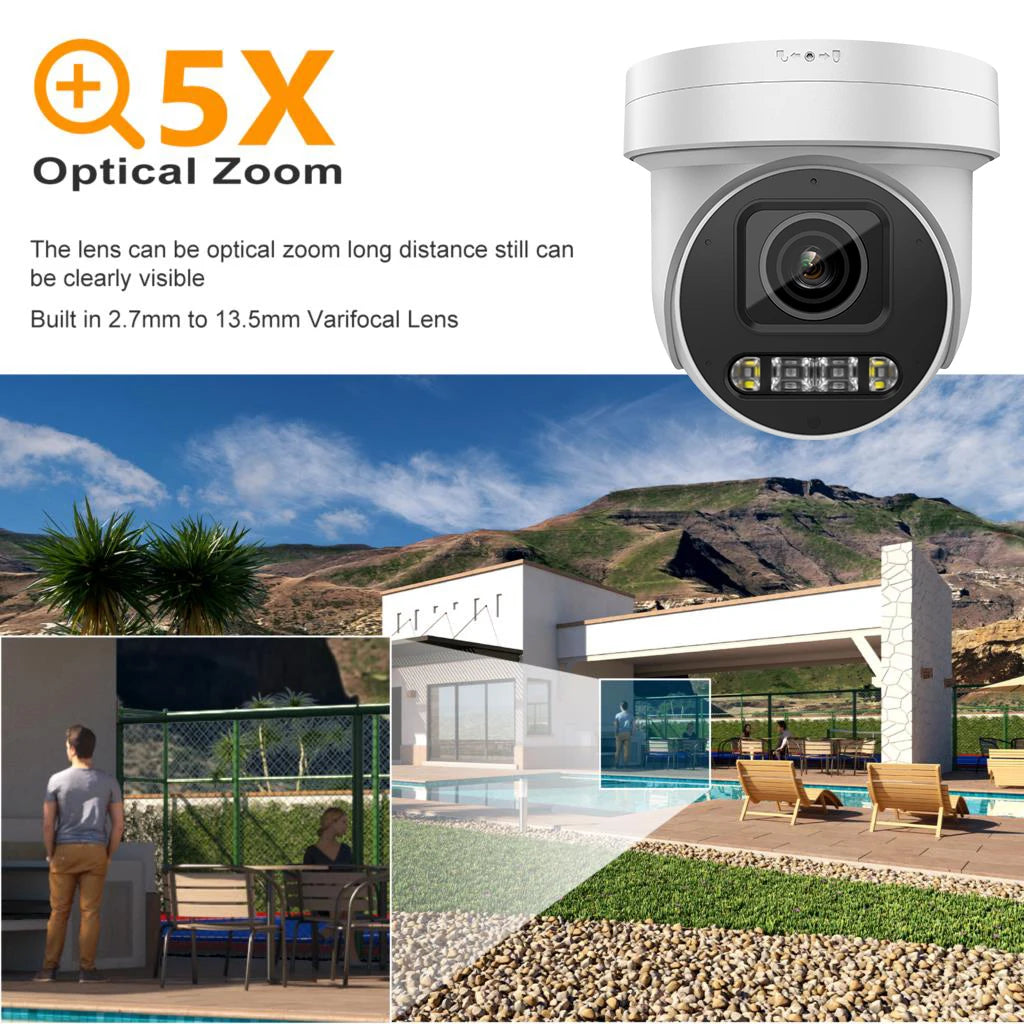

Focal Length |
2.7-13.5 mm 5X Optical zoom |
Aperture |
F1.6-3.3 |
Lens Type |
Varifocal lens,motorized lens,2.7 to 13.5mm |
FOV |
horizontal FOV: 101° to 34°, vertical FOV: 56 to 19°, diagonal FOV:125° to 37° |
Lens Mount |
M14 |

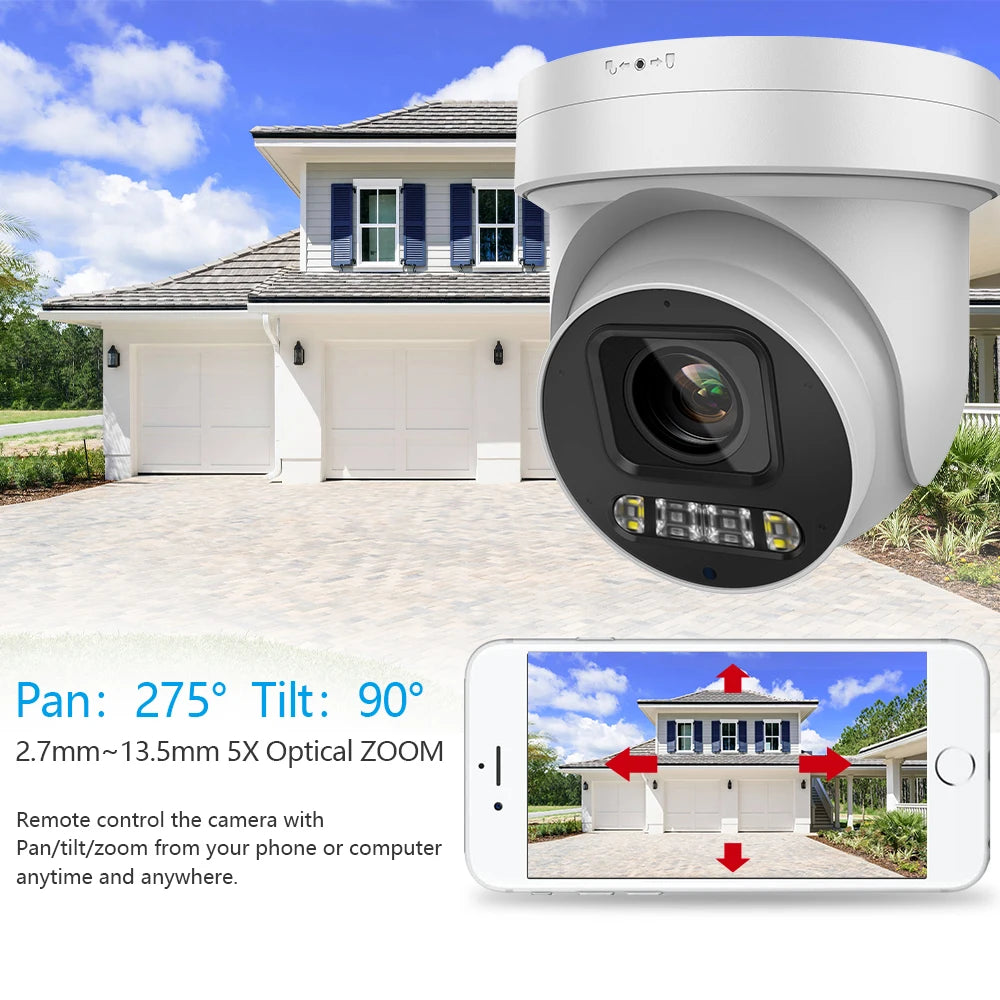

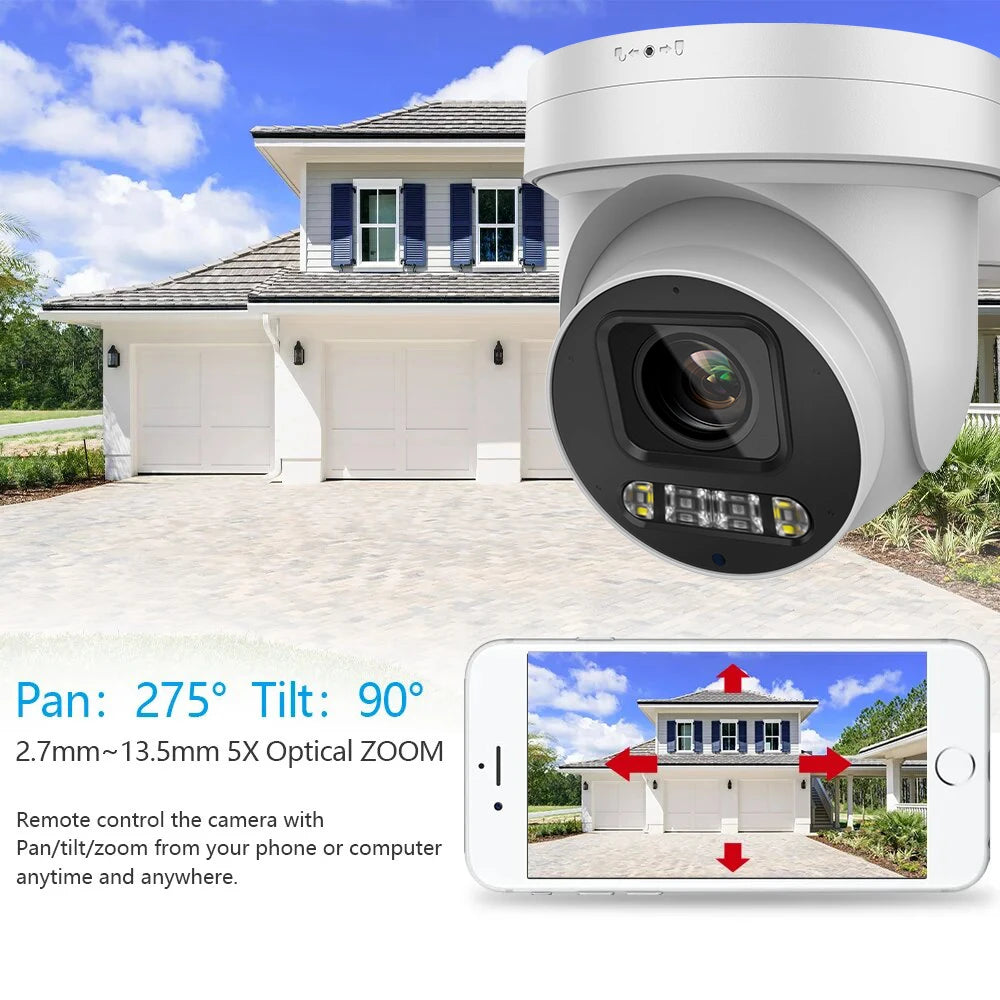

PTZ |
|
Movement Range(Pan) |
275° |
Movement Range(Tilt) |
0° to 90° |
Pan Speed |
Pan Speed: 15°/s |
Tilt Speed |
Tilt Speed: 10°/s |

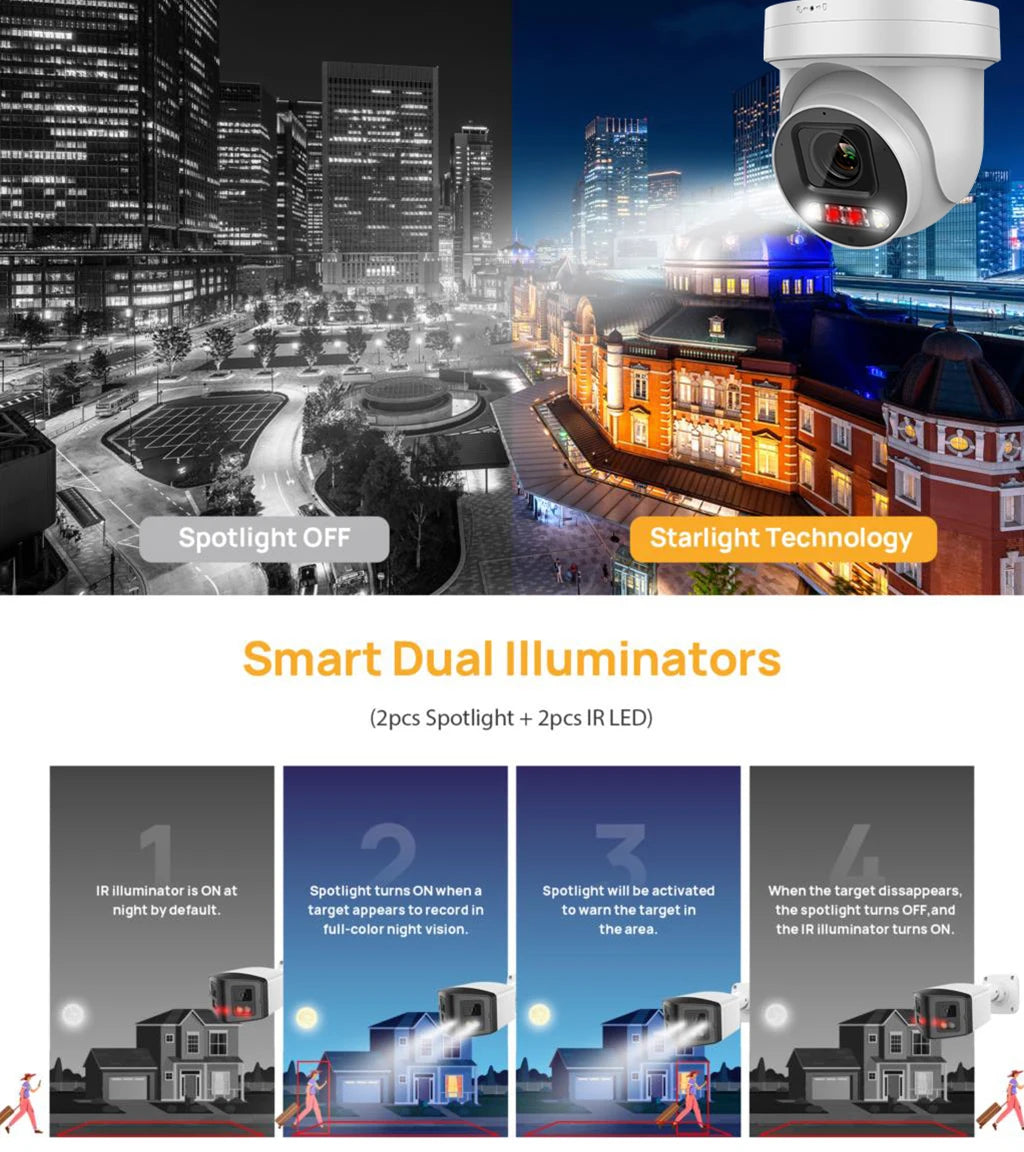

Illuminator |
|
White & IR Light Range |
Up to40 m |
Smart Supplement Light |
Yes |
Compression Standard |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264 Sub-stream: H.265+/H.265/H.264 |
H.264 Type |
High Profile/Main Profile/Base Profile |
H.265 Type |
High Profile/Main Profile/Base Profile |
H.265+ |
High Profile/Main Profile/Base Profile |
Smart Feature-set |
|
Smart Event |
Human detection, Vehice detection |
Basic Event |
Motion detection |
|
Linkage Method |
Trigger recording: network storage, pre-record and post-record Trigger captured pictures uploading: FTP, Email Trigger notification:FTP, Email |
Image | |
Max. Resolution |
3840×2160 |
|
Main Stream |
50Hz:20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 ) 60@FPS(1920×1080,1280×720) 60Hz:20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 ) 60@FPS(1920×1080,1280×720) |
Sub-Stream |
50Hz:30 fps (720 x 480,640 × 480, 640 × 360,480 ×480,480 ×360,CIF) |
60Hz:30 fps (720 x 480,640 × 480, 640 × 360,480 ×480,480 ×360,CIF) | |
Image Enhancement |
WDR/HDR/3D DNR/2D DNR/HLC/BLC |
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser |
SVC |
H.264 and H.265and H.265+encoding support |
Day/Night Switch |
Day/Night/Auto/Schedule |
Network | |
Network Storage |
Support local storage and NAS (NFS, SMB/CIFS) |
Protocols |
HTTP,RTSP,DHCP,FTP,NTP,ONVIF,P2P,DHCP,SMTP,RTMP |
Client |
AJ_Client,AC18Pro,Videolink |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Built-in Microphone |
YES |
Built-in Speaker |
Power: 3W.MAX. Sound pressure lever:10cm: 100dB. |
Reset Key |
YES |
On-Board Storage |
Built-in memory card slot, support microSD card,up to 512GB |
General | |
Operating Conditions |
-30°C to +85 °C, humidity 95% or less (non-condensing) |
|
Web Client Language |
14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi |
|
Power Supply |
DC 12V 2A, Φ 5.5*2.1mm coaxial plug power PoE(802.3af) Max.12W |
Protection Level |
IP67-Each Camera has been tested waterproof |
Material |
Front cover:metal,body:metal,bracket:metal |
|
Dimensions |
Camera: 139 ×117 x 107mm(5.47" ×4.61 x 4.21") Package:148× 148 × 169 mm (5.83" × 5.83" × 6.65”) |
Weight |
Apporx.510g(1.12 lb) |
With Package Weight |
Apporx.650g(1.43 lb) |
